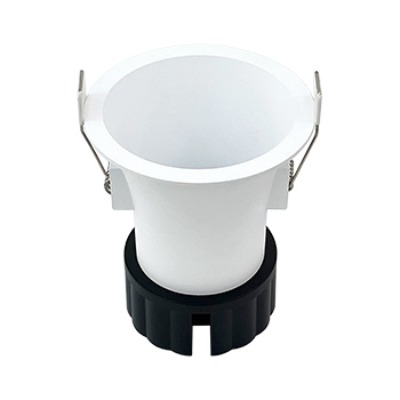

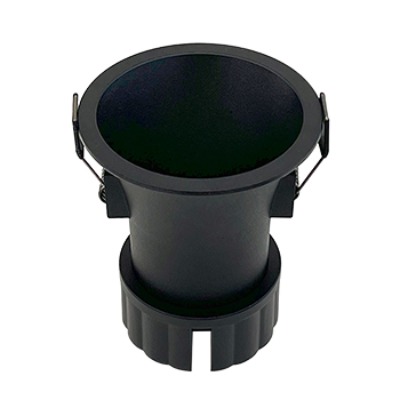

8669 - High - Peofile heat sink

Parameter Specification

Wattage 4W / 5W / 9W / 10W / 12W / 15W

CCT 3000K / 4000K / 6000K

CRI Ra ≥ 90

Cut-out Ø 35mm / Ø 45mm / Ø 55mm / Ø 65mm / Ø 75mm / Ø 95mm / Ø 115mm / Ø 135mm / Ø 155mm / Ø 175mm

Face Size 40*H75mm / 50*H80mm / 62*H87mm / 72*H97mm / 84*H115mm / 106*H124mm / 128*H152mm / 149*H180mm / 171*H208mm / 193*H236mm

Material Aluminum Alloy

Luminous Flux 130 lm/w

8669 - Low - Peofile heat sink

Parameter Specification

Wattage 3W*2 / 5W / 7W / 10W

CCT 3000K / 4000K / 6000K

CRI Ra ≥ 90

Cut-out Ø 35mm / Ø 45mm / Ø 55mm / Ø 65mm / Ø 75mm

Face Size 40*H56mm / 50*H66mm / 62*H76mm / 72*H87mm / 84*H97mm

Material Aluminum Alloy

Luminous Flux 130 lm/w
